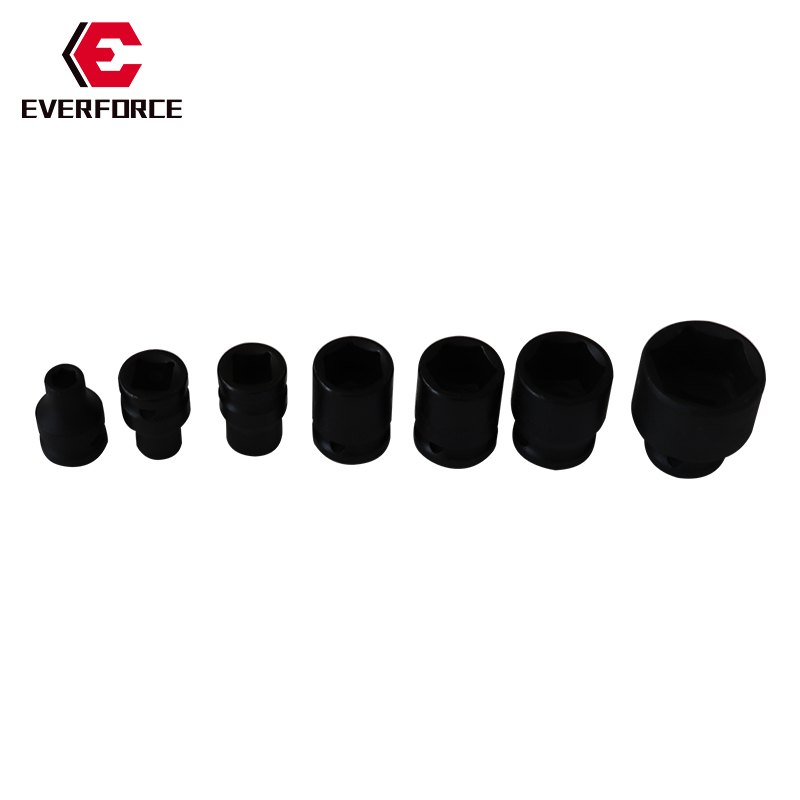

1/2"公英制六角气动套筒
型号规格D1D2LPCS(六角符号）（mm）(mm)(mm)纸箱图片EF5100501814.62538240EF5100502915.82538240EF51005031017.12538240EF51005041118.42538240EF510
详情介绍
| 型号 | 规格 | D1 | D2 | L | PCS |
| (六角符号） | （mm） | (mm) | (mm) | 纸箱图片 | |
| EF5100501 | 8 | 14.6 | 25 | 38 | 240 |
| EF5100502 | 9 | 15.8 | 25 | 38 | 240 |
| EF5100503 | 10 | 17.1 | 25 | 38 | 240 |
| EF5100504 | 11 | 18.4 | 25 | 38 | 240 |
| EF5100505 | 12 | 19.6 | 25 | 38 | 240 |
| EF5100506 | 13 | 20.8 | 25 | 38 | 240 |
| EF5100507 | 14 | 22.1 | 25 | 38 | 240 |
| EF5100508 | 15 | 23.3 | 30 | 38 | 160 |
| EF5100509 | 16 | 24.6 | 30 | 38 | 160 |
| EF5100510 | 17 | 25.8 | 30 | 38 | 160 |
| EF5100511 | 18 | 27.1 | 30 | 38 | 160 |
| EF5100512 | 19 | 28.3 | 30 | 38 | 160 |
| EF5100513 | 20 | 29.5 | 30 | 38 | 160 |
| EF5100514 | 21 | 30.8 | 30 | 38 | 160 |
| EF5100515 | 22 | 32.3 | 30 | 38 | 120 |
| EF5100516 | 23 | 33.3 | 30 | 43 | 120 |
| EF5100517 | 24 | 34.6 | 30 | 43 | 120 |
| EF5100518 | 25 | 35.8 | 30 | 43 | 120 |
| EF5100519 | 26 | 37 | 30 | 43 | 96 |
| EF5100520 | 27 | 38.3 | 30 | 43 | 96 |
| EF5100521 | 28 | 39.5 | 30 | 48 | 96 |
| EF5100522 | 29 | 40.8 | 30 | 48 | 88 |
| EF5100523 | 30 | 42.1 | 30 | 48 | 88 |
| EF5100524 | 31 | 43.3 | 30 | 48 | 88 |
| EF5100525 | 32 | 44.6 | 30 | 48 | 80 |
| 型号 | 规格 | D1 | D2 | L | PCS |
| (六角符号） | （mm） | (mm) | (mm) | 纸箱图片 | |
| EF5100526 | 5/16" | 14.6 | 25 | 38 | 240 |
| EF5100527 | 3/8" | 16.5 | 25 | 38 | 240 |
| EF5100528 | 7/16" | 18.4 | 25 | 38 | 240 |
| EF5100529 | 1/2" | 20.5 | 25 | 38 | 240 |
| EF5100530 | 9/16" | 22.4 | 25 | 38 | 240 |
| EF5100531 | 5/8" | 24.6 | 30 | 38 | 240 |
| EF5100532 | 11/16" | 26.3 | 30 | 38 | 160 |
| EF5100533 | 3/4" | 28.3 | 30 | 38 | 160 |
| EF5100534 | 13/16" | 30.4 | 30 | 38 | 160 |
| EF5100535 | 7/8" | 32.3 | 30 | 38 | 120 |
| EF5100536 | 15/16" | 34.6 | 30 | 43 | 120 |
| EF5100537 | 1" | 36.4 | 30 | 43 | 120 |
| EF5100538 | 1-1/16" | 38.3 | 30 | 43 | 120 |
| EF5100539 | 1-1/8" | 40.2 | 30 | 43 | 96 |
| EF5100540 | 1-3/16" | 42.1 | 30 | 43 | 96 |
| EF5100541 | 1-1/4" | 44.6 | 30 | 43 | 80 |
